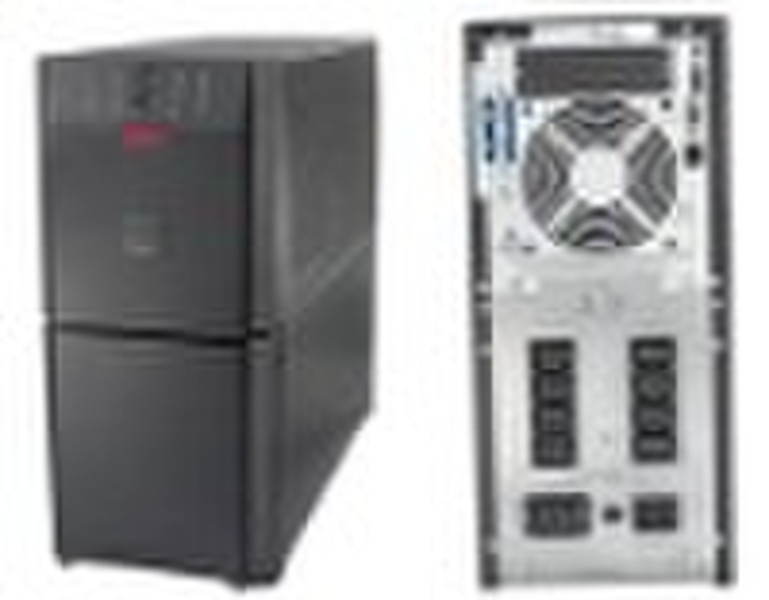

APC UPS 5000VA

APC UPS APC Smart-UPS 5000VA/3750W, Input 230V/Output 230V, Interface Port DB-9 RS-232,RJ-45 10 Base-T Ethernet for web/SNM Specification Mfr Part Number: SUA3000 Color : Black Output Output power Capacity : 2700 Watts/3000VA Max Configurable Power:2700 Watts/3000VA Nominal Output Voltage:120V Efficiency at Full Load : 95% Output Voltage Distortion : Less than 5% at full load Output Frequency ( sync to mains) : 47 53Hz for 50Hz nominal , 57 63 Hz for 60 Hz nominal Crest Factor : Up to 5: 1 Waveform Type : Sine wave Output Connections :8x NEMA 5-15R ; 2X NEMA 5-20R Input Nominal input Voltage: 120V Input Frequency : 50/60 Hz +/- 3Hz (auto sensing) Input Connections : NEMA L5-30P Cord Length : 6feet (1.83 meters) Input Voltage range for main operations : 82 144V Input Voltage adjustable range for mains operation : 75 154 V Batteries & Runtime Battery Type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte (leakproof) Typical recharge time : 3 hours Replacement battery cartridge : RBC55 RBC Quantity : 1 Typical Backup Time at Half Load : 13.6 MINUTES (1350 Watts ) Typical Backup Time at Full Load : 5.5 minutes ( 2700 Watts ) Communications & Management Interface Ports : DB-9 RS – 232, USB ,Smart Slot Available SmartSlot Interface Quantity : 1 Control Panel : LED status display with load and battery bar-graphs and On line : On Battery : Replace Battery : and Overload Indicators Audible Alarm : Alarm when on battery ; distinctive low battery alarm ; configurable delays Emergency Power Off ( EP0 ) : Yes Surge Protection and Filtering Surge energy rating : 459 Joules Filtering : Full time multi-pole noise filtering ; 0.3% IEEE surge let-through; zero clamping response time; meets UL 1449 Storage Elevation : 0 15000 meters Audible noise at 1 meter from surface of unit : 45 Dba Online Thermal Dissipation : 275 BTU/hr Regulatory Approvals : CSA, FCC Part 15 Class A, UL 1778 Dimension (WXDXH): 7.72X21.50X17.01 inch / 196 x 546 x 432 mm Weight : 116.25 lbs /52.73kg
